Volkswagen Taos: Windscreen wipewash system. Rear window washer system
- Assembly overview – rear window washer system
- Removing and installing spray jet, rear window washer system
Assembly overview – rear window washer system

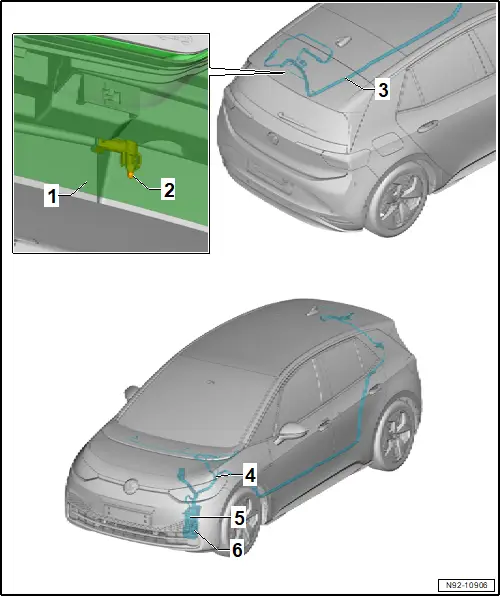

Assembly overview – rear window washer system
1 - Trim for rear spoiler
❏ → General body repairs, exterior; Rep. gr.66; Spoilers; Removing and installing spoiler trim
2 - Spray jet
❏ → Rep. gr.92; Removing and installing spray jet, rear window washer system
3 - Hose for washer fluid
❏ In left side panel to spray jet of rear window washer system
4 - Hose for washer fluid
❏ In engine compartment to spray jet of rear window washer system
5 - Washer fluid reservoir
❏ → Rep. gr.92; Removing and installing washer fluid reservoir
6 - Windscreen and rear window washer pump -V59-
❏ → Rep. gr.92; Removing and installing windscreen washer pump
❏ With sealing grommet
Removing and installing spray jet, rear window washer system
Removing and installing spray jet, rear window washer system

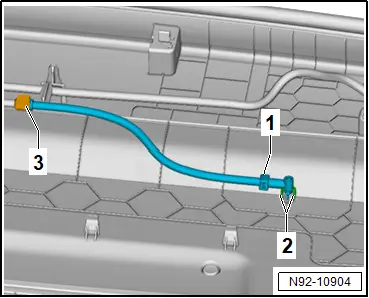

Removing
– Remove trim for rear spoiler → General body repairs, exterior; Rep. gr.66; Spoilers; Removing and installing spoiler trim.
– Release and pull off washer fluid hose -3-.
– Release fasteners -2-.
– Pull out spray jet -1-.
Installing
Install in reverse order of removal.
