Volkswagen Taos: Lights, lamps, switches outside. Lights in exterior mirror
- Removing and installing turn signal repeater bulb [L131]/[L132]
- Removing and installing entry light in exterior mirror [W52]/[W53]
Removing and installing turn signal repeater bulb [L131]/[L132]
Removing and installing turn signal repeater bulb [L131]/[L132]
Driver side exterior mirror turn signal bulb -L131- and front passenger side exterior mirror turn signal bulb -L132- will henceforth be referred to as “turn signal in exterior mirror”.
Removal and installation are described for the left side of vehicle as an example.
Removing
– Remove upper mirror cover → General body repairs, exterior; Rep. gr.66; Exterior mirrors; Removing and installing upper mirror cover.

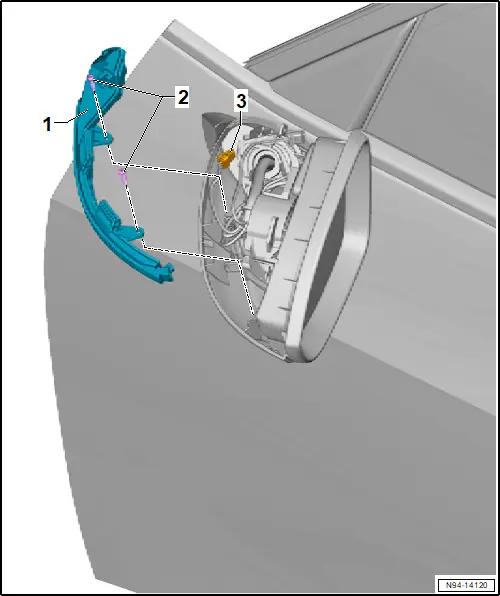

– Disconnect electrical connector -3-.
– Unscrew bolts -2-.
– Remove turn signal -1-.
Installing
Install in the reverse order of removal, observing the following:
Tightening torques
♦ → General body repairs, exterior; Rep. gr.66; Exterior mirror; Assembly overview - exterior mirror
Removing and installing entry light in exterior mirror [W52]/[W53]
Removing and installing entry light in exterior mirror [W52]/[W53]
Entry light in exterior mirror, driver side -W52- and entry light in exterior mirror, passenger side -W53- will henceforth be referred to as “entry light”.
Removal and installation are described for the left vehicle side as an example.
Removing
– Remove turn signal → Rep. gr.94; Removing and installing exterior mirror turn signal bulb [L131]/[L132].

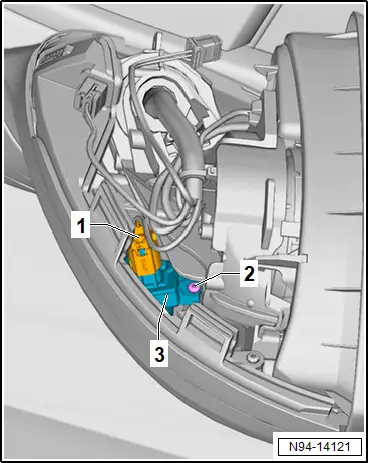

– Unscrew bolt -2-.
– Guide out entry light -3-.
– Disconnect electrical connector -1-.
Installing
Install in reverse order of removal, observing the following:
Tightening torques
♦ → General body repairs, exterior; Rep. gr.66; Exterior mirror; Assembly overview - exterior mirror
