Determining the correct wheel and tyre combinations according to WLTP
Determining the correct wheel and tyre combinations according to WLTP
Procedure
1 - Glean type approval number from vehicle registration certificate part 1 under “K”.
2 - Search for displacement under “P1” from nominal power under “P2” from registration certificate part 1.
3 - Using type approval number, search for corresponding chapter “Possible wheel and tyre combinations” in Wheels and Tyres Guide → Chapter.
4 - Search for relevant wheel and tyre combinations. Depending on equipment, “Breakdown of version key (D2)” may be necessary when doing this.
5 - Using type approval number, search for corresponding chapter “Breakdown of version key (D2)” in Wheels and Tyres Guide → Chapter.
6 - Search for relevant wheel and tyre combinations for the vehicle.

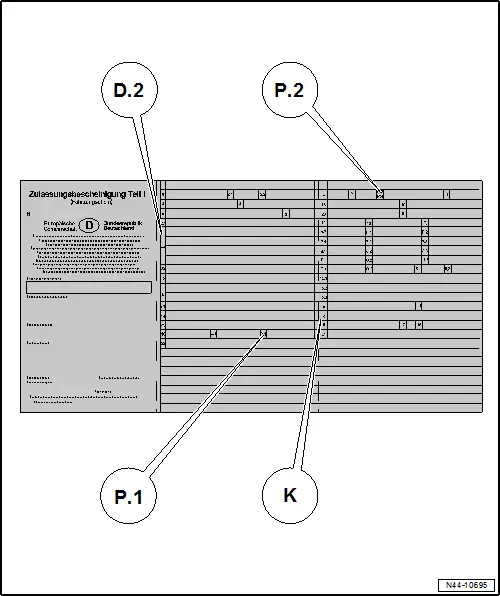

D.2 - Comprises the model key and the version key
K - Comprises type approval number
P.1 - Not assigned
P.2 - Rated output in kW
Example:
D.2 - C 0 M 4 1A A
K - e1*2007/46*2033*00
P.2 - 150 kW
7.5 J X 18 offset 50
7.5 J X 18 offset 50
Note
Always
observe the allocation of wheels/tyres to the respective engines as
listed in the overview table.Explanation of information on wheels: →
Rep. gr.44; Useful information about passenger car wheels,
specifications on wheelsSpecified torque for wheel bolts: → Chapter
„Tightening torque for wheel bolts“Pitch circle diameter:112 mmNumber of
wheel bolt holes:5

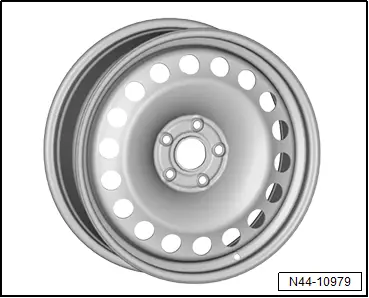

1EA.601.027 - steel rim
Dimensions:7.5 J x 18Wheel offset in mm:50Wheel load in kg:635

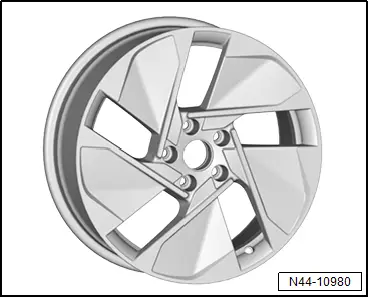

10A.601.025.C; 10A 601 025 G – aluminium wheel “EAST DERRY”
Dimensions:7.5 J x 18Wheel offset in mm:50Wheel load in kg:630
7.5 J X 19 offset 50
7.5 J X 19 offset 50
Note
Always
observe the allocation of wheels/tyres to the respective engines as
listed in the overview table.Explanation of information on wheels: →
Rep. gr.44; Useful information about passenger car wheels,
specifications on wheelsSpecified torque for wheel bolts: → Chapter
„Tightening torque for wheel bolts“Pitch circle diameter:112 mmNumber of
wheel bolt holes:5

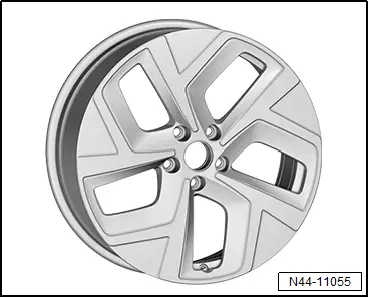

10A.601.025; 10A 601 025 H – aluminium wheel “ANDOYA”
Dimensions:7.5 J x 19Wheel offset in mm:50Wheel load in kg:630

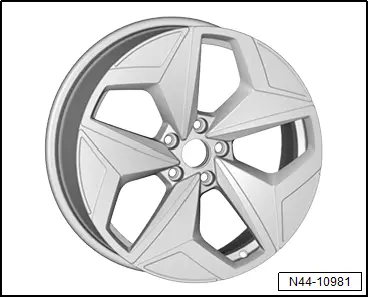

10A.601.025.K; 10A.601.025.L – aluminium wheel “WELLINGTON”
Dimensions:7.5 J x 19Wheel offset in mm:50Wheel load in kg:640
7.5 J x 20 offset 44
7.5 J x 20 offset 44
Note
Always
observe the allocation of wheels/tyres to the respective engines as
listed in the overview table.Explanation of information on wheels: →
Rep. gr.44; Useful information about passenger car wheels,
specifications on wheelsSpecified torque for wheel bolts: → Chapter
„Tightening torque for wheel bolts“Pitch circle diameter:112 mmNumber of
wheel bolt holes:5

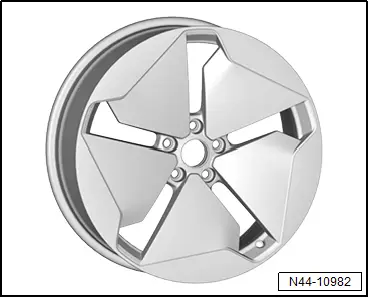

10A.601.025.B – aluminium wheel “SANYA”
Dimensions:7.5 J x 20Wheel offset in mm:44Wheel load in kg:630
