Overview of fitting locations – front axle, rear-wheel drive

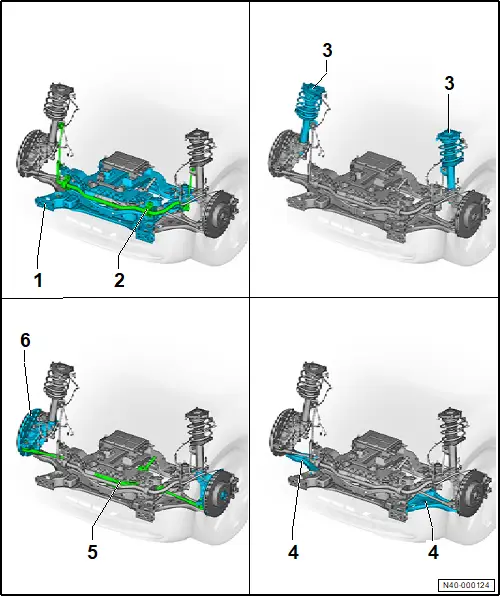

Overview of fitting locations – front axle, rear-wheel drive
1 - Subframe
❏ → Rep. gr.40; Assembly overview – subframe
❏ → Rep. gr.40; Removing and installing subframe with steering rack
❏ → Rep. gr.40; Fixing subframe in position
2 - Anti-roll bar
❏ → Rep. gr.40; Assembly overview – anti-roll bar
❏ → Rep. gr.40; Removing and installing anti-roll bar
3 - Suspension strut
❏ → Rep. gr.40; Assembly overview – suspension strut
❏ → Rep. gr.40; Removing and installing suspension strut
4 - Suspension link, swivel joint
❏ → Rep. gr.40; Assembly overview – suspension link, swivel joint
❏ → Rep. gr.40; Removing and installing suspension link
❏ → Rep. gr.40; Removing and installing swivel joint
5 - Steering rack
❏ → Rep. gr.48; Assembly overview – steering rack
❏ → Rep. gr.48; Removing and installing steering rack
6 - Wheel bearings
❏ → Rep. gr.40; Assembly overview – wheel bearing
❏ → Rep. gr.40; Removing and installing wheel bearing housing
❏ → Rep. gr.40; Removing and installing wheel bearing unit
