Volkswagen Taos: 1-speed gearbox 0MH, rear, EQ310. Final drive, differential, differential lock
Assembly overview ? seals

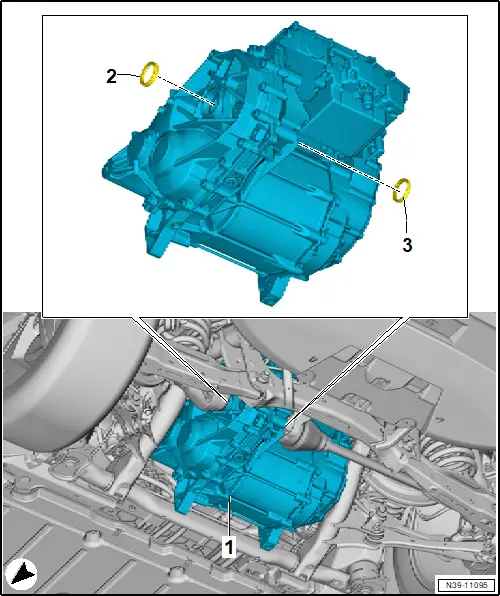

Assembly overview ? seals
1 - Three-phase current drive -VX54- with gearbox
2 - Left drive shaft seal
❏ Renew after removing
❏ → Rep. gr.39; Renewing left seal
3 - Seal for right drive shaft
❏ Renew after removing
❏ → Rep. gr.39; Renewing right seal
Renewing left seal
Renewing left seal
Special tools and workshop equipment required
♦ multi-purpose tool -VW771-
♦ puller hook -VW771/37-
♦ thrust piece -T10481-
Removing
– Remove left drive shaft → Running gear, axles, steering; Rep. gr.42; Drive shaft; Removing and installing drive shafts.

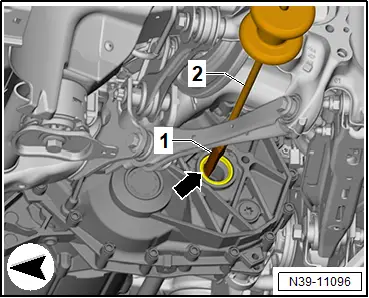

– Use puller hook -VW771/37- -1- and multi-purpose tool -VW771- -2- to pull out seal -arrow-.
Installing

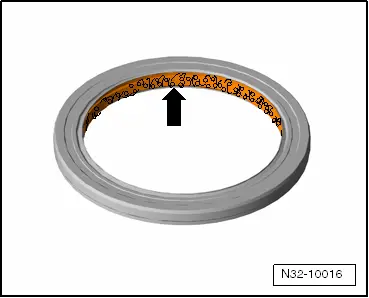

– Half-fill space between sealing lip and dust lip -arrow- with sealing grease.
Sealing grease → Electronic parts catalogue (ETKA)

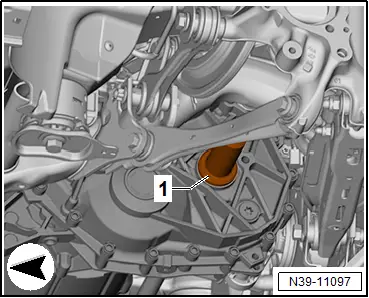

– Drive in new seal to stop using thrust piece -T10481- -1- keeping the seal absolutely straight in the process.
– Install left drive shaft → Running gear, axles, steering; Rep. gr.42; Drive shaft; Removing and installing drive shaft.
– → Rep. gr.34; Check gear oil level.
