Volkswagen Taos: Air conditioner. Overview of fitting locations
- Overview of fitting locations - components not located in vehicle interior
- Overview of fitting locations – components in vehicle interior

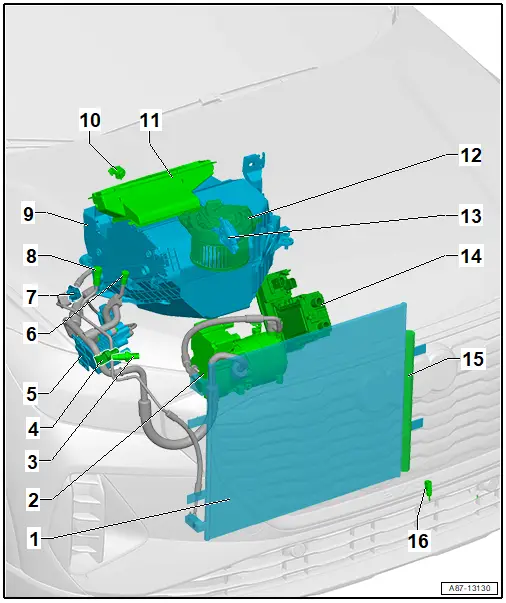

Overview of fitting locations - components not located in vehicle interior
Overview of fitting locations - components not located in vehicle interior
1 - Condenser
❏ → Rep. gr.87; Assembly overview - condenser
❏ → Rep. gr.87; Removing and installing condenser
2 - Air conditioner compressor -VX81-
❏ With electrical air conditioner compressor -V470- and control unit for air conditioner compressor -J842-
❏ → Rep. gr.87; Removing and installing air conditioner compressor VX81
3 - Pressure sender for refrigerant circuit -G805-
❏ → Rep. gr.87; Removing and installing pressure sender for refrigerant circuit G805
4 - Refrigerant pressure and temperature sender -G395-
❏ → Rep. gr.87; Removing and installing refrigerant pressure and temperature sender G395
5 - Heat exchanger for high-voltage battery with refrigerant expansion valve 1 -N636-
❏ → Rep. gr.87; Removing and installing heat exchanger for high-voltage battery
6 - Service connection (low-pressure side)
❏ → Rep. gr.87; Removing and installing evacuating and charging valve (low-pressure and high-pressure sides)
7 - Refrigerant shut-off valve for heater and air conditioning unit -N541-
❏ → Rep. gr.87; Removing and installing refrigerant shut-off valve for heater and air conditioning unit N541
8 - Service connection (high-pressure side)
❏ → Rep. gr.87; Removing and installing evacuating and charging valve (low-pressure and high-pressure sides)
9 - Air intake box of heater and air conditioning unit
❏ → Rep. gr.87; Removing and installing air intake box of heater and air conditioning unit
10 - External air quality and air humidity sensor -G935-
❏ → Rep. gr.87; Removing and installing external air quality and air humidity sensor G935
11 - Fresh air intake
❏ → Rep. gr.87; Removing and installing fresh air intake
12 - Fresh air blower control unit -J126-
❏ → Rep. gr.87; Removing and installing fresh air blower control unit J126
13 - Control motor for fresh air and air recirculation flap -VX96-
❏ → Rep. gr.87; Removing and installing control motor for fresh air and air recirculation flap VX96
14 - PTC heater element 3 -Z132-
❏ → Rep. gr.87; Removing and installing heater element 3 Z132
15 - Desiccant bag
❏ → Rep. gr.87; Removing and installing desiccant bag/dryer
16 - Ambient temperature sensor -G17-
❏ → Rep. gr.87; Removing and installing ambient temperature sensor G17

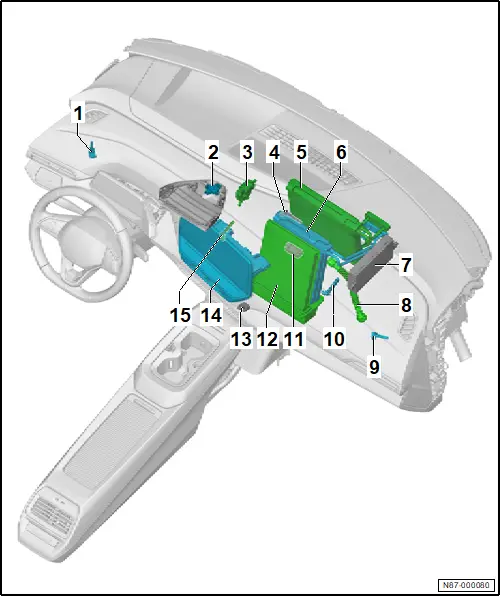

Overview of fitting locations – components in vehicle interior
Overview of fitting locations – components in vehicle interior
Overview shows left-hand drive vehicle as an example
1 - Left vent temperature sender -G150-
❏ → Rep. gr.87; Removing and installing left vent temperature sender [G150[
2 - Rain and light sensor -G397-
❏ With humidity sender for air conditioning system -G260-
❏ With photosensor -G107-
❏ → Electrical system; Rep. gr.92; Windscreen wiper system; Removing and installing rain and light sensor [G397]
3 - Control motor
❏ Shown as an example for all control motors
❏ → Rep. gr.87; Overview of fitting locations - front control motors
4 - Evaporator temperature sensor -G308-
❏ → Rep. gr.87; Removing and installing evaporator temperature sensor [G308]
5 - Heat condenser
❏ Depending on equipment/version
❏ → Rep. gr.87; Removing and installing heat condenser
6 - Evaporator
❏ → Rep. gr.87; Removing and installing evaporator
7 - Heater and air conditioning system control unit -J979-
❏ Right-hand drive vehicle: mirror image
❏ → Rep. gr.87; Removing and installing heater and air conditioning system control unit [J979]
8 - Condensation drain hose
❏ → Rep. gr.87; Checking condensation drain
❏ → Rep. gr.87; Removing and installing condensation drain
9 - Right vent temperature sender -G151-
❏ → Rep. gr.87; Removing and installing right vent temperature sender [G151]
10 - Right footwell vent temperature sender -G262-
❏ → Rep. gr.87; Removing and installing right footwell vent temperature sender [G262]
11 - Sensor for interior carbon dioxide concentration -G929-
❏ Depending on equipment/version
❏ → Rep. gr.87; Removing and installing sensor for interior carbon dioxide concentration [G929]
12 - High-voltage heater (PTC) -ZX17-
❏ With high-voltage heater (PTC) control unit -J848-
❏ With high-voltage heater (PTC) -Z115-
❏ → Rep. gr.87; Removing and installing high voltage heater (PTC) [ZX17]
13 - Vehicle interior temperature sensor -G1090-
❏ → Rep. gr.87; Removing and installing vehicle interior temperature sensor [G1090]
14 - Display unit for front information display and operating unit control unit -J685-
❏ → Rep. gr.87; Removing and installing display unit for front information display and operating unit control unit [J685]
15 - Left footwell vent temperature sender -G261-
❏ → Rep. gr.87; Removing and installing left footwell vent temperature sender [G261]
