Volkswagen Taos: Vehicle-specific paintwork information. Masked sectors
Volkswagen Taos (Type CL) 2022-2025 Service Manual / Body / Vehicle-specific paint information / Vehicle-specific paintwork information. Masked sectors
Masking areas, front body
Masking areas, front body
Vehicle front end, centre
Important
● Keep marked areas for threads and contact surfaces -A- free of sealant and wax.
Masking areas, rear body
Masking areas, rear body

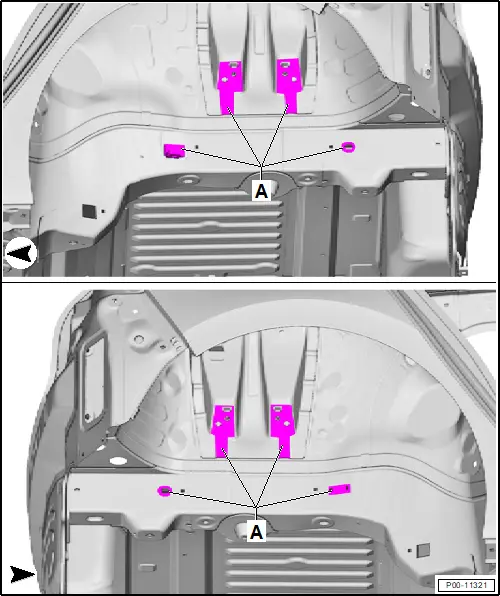

Rear left and right wheel housing
Important
● Keep marked areas for threads and contact surfaces -A- free of sealant and wax.

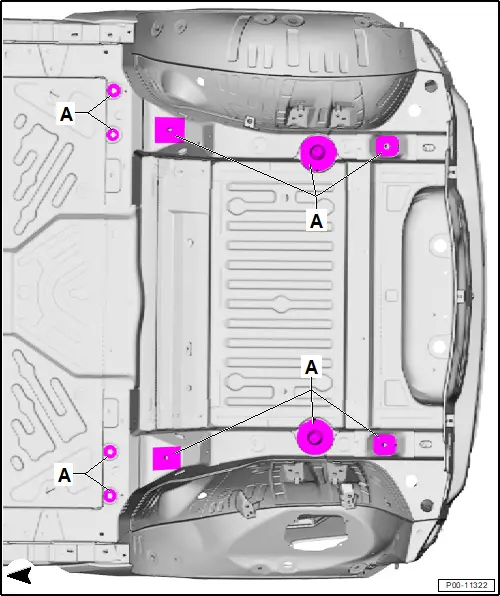

Underbody
Important
● Keep marked areas for threads and contact surfaces -A- free of sealant and wax.
Volkswagen Taos (Type CL) 2022-2025 Service Manual
Vehicle-specific paintwork information. Masked sectors
